In modern industrial systems, electric motors are the backbone of various processes—from pumps and blowers to conveyors and compressors. Due to their vital role, motor failure can cause costly downtime and disrupt productivity.
One smart approach to prevent this is to analyze the Power Quality Spectrum as a condition monitoring tool for electric motors.

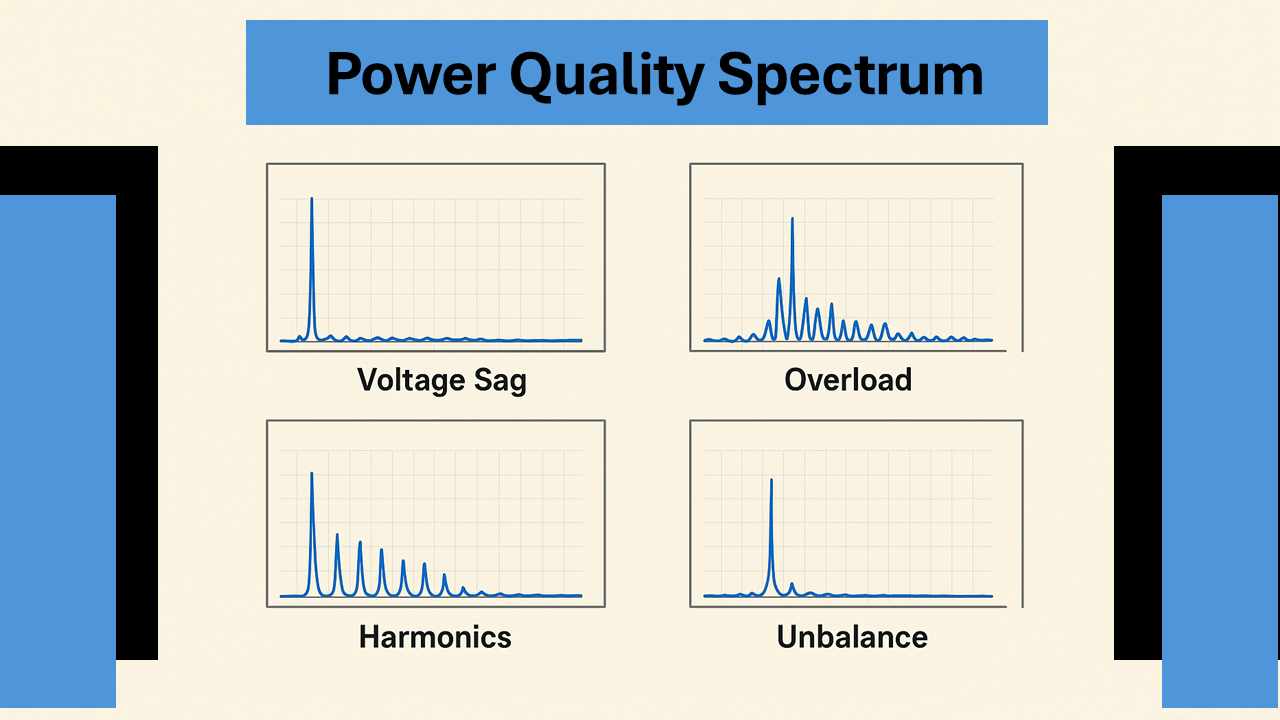

What is a Power Quality Spectrum?
A Power Quality Spectrum is the result of a frequency analysis of an electrical signal (voltage or current) using the Fast Fourier Transform (FFT) method.
This analysis converts the signal from the time domain to the frequency domain—so that hidden disturbances in the electrical system can be clearly identified as specific harmonic components.
Example:
- A healthy motor has a dominant signal at 50 Hz (the fundamental frequency).
- A faulty motor has additional frequencies such as 100 Hz, 150 Hz, or even certain sidebands due to vibration, unbalance, or bearing damage.
Why is a Power Quality Spectrum Important for Electric Motors?
This spectrum analysis allows technicians to detect early signs of motor failure without having to open or stop the machine.
Unlike a physical inspection, this method is non-intrusive and can be performed from the electrical panel.
Types of Motor Faults That Can Be Detected
1. Unbalance or Misalignment
- The appearance of asymmetrical harmonics between phases.
- Visible increase in components at frequencies 2× or 3× the fundamental frequency.
2. Bearing Fault
- Causes specific vibration frequencies (bearing fault frequencies) to appear in the motor current spectrum.
3. Rotor Bar Fault
- Identified through sidebands around the fundamental frequency (e.g., 50± slip frequency).
4. Inverter Overload or Harmonics
- Visible by an increase in high harmonics (5th, 7th, 11th, etc.).
With this analysis, the maintenance team can identify fault patterns early and schedule repairs before total failure occurs.
Integration with Predictive Maintenance Systems
Power Quality Spectrum is now widely used as part of data-driven predictive maintenance.
Current and voltage sensors are monitored in real time, the data is analyzed using FFT algorithms or AI pattern recognition, and the system automatically notifies if anomalous patterns are detected.
This combination results in a maintenance system that:
- is efficient and cost-effective,
- reduces the risk of unexpected downtime,
- increases the lifespan of motors and related equipment.
Conclusion
Monitoring the condition of electric motors using Power Quality Spectrum is a modern approach to maintaining the reliability of industrial systems.
This method not only measures whether the electricity is "clean" but also identifies sources of disturbances directly related to motor health.
