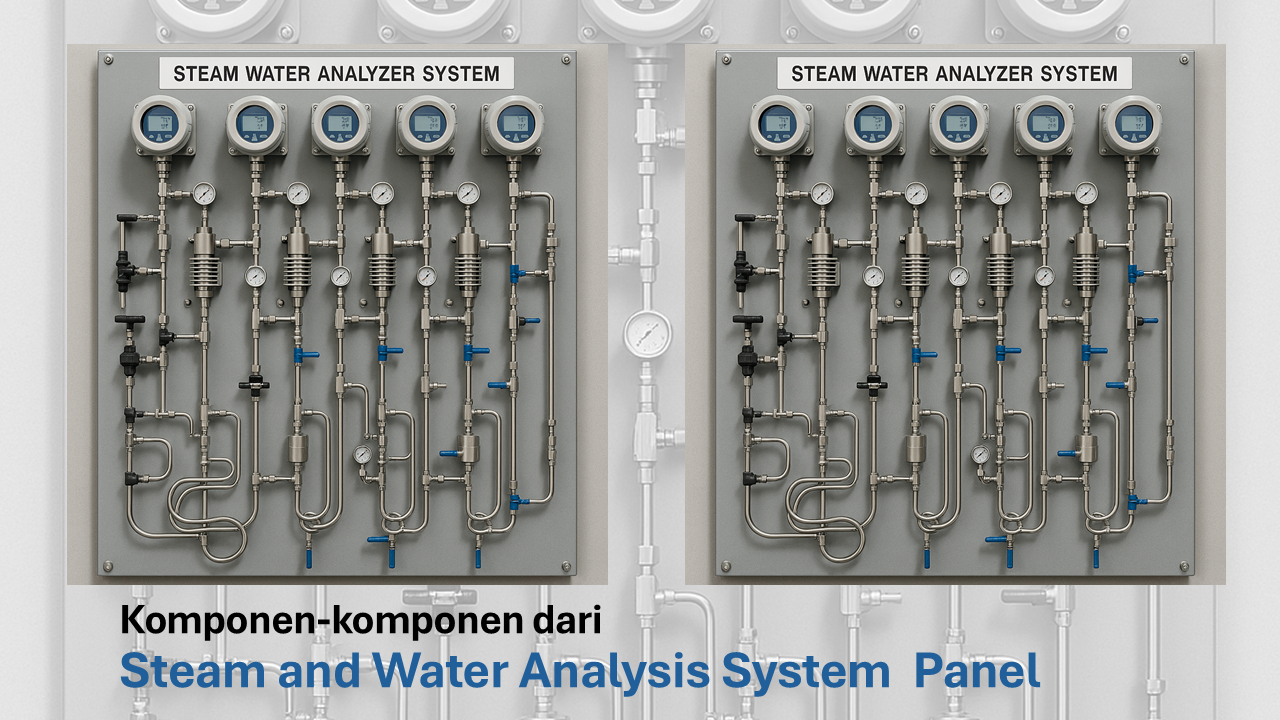

The Steam and Water Analysis System (SWAS) Panel is a crucial system in power generation and boiler-based factories. Its primary function is to analyze water and steam quality in real time to ensure equipment remains safe, efficient, and has a longer service life. To ensure optimal operation, the SWAS Panel consists of several key components that support each other.
1. Sample Conditioning Unit (SCU)
This unit is responsible for conditioning the steam or water sample to be analyzed. The high-pressure, high-temperature steam is cooled to a safe level before entering the measuring instrument. Components of the SCU typically include:
- Cooler
- Pressure reducer
- Flow control
2. Analytical Instruments
Analytical instruments are the core of the SWAS Panel, used to measure various water and steam quality parameters, such as:
- pH meter to measure acidity or alkalinity.
- Conductivity analyzer to determine dissolved ion levels.
- Silica analyzer to detect silica content that can cause scaling.
- Dissolved oxygen analyzer to monitor dissolved oxygen levels that can potentially cause corrosion.
- Sodium analyzer to detect condensate leaks or demineralized water quality.
3. Panel and Housing
The stainless steel panel serves as both a housing and a protective barrier for the entire instrument and tubing system. The panel's tightly sealed design protects the equipment from dust, moisture, and vibration.
4. Tubing and Piping
A network of small pipes and tubing made of anti-corrosion materials (such as stainless steel) is used to transport samples from the sampling point to the panel. High-quality materials are essential to prevent contamination of measurement results.
5. Cooling Water System
The cooling water system supports the cooler's function by lowering the temperature of the vapor sample. Without this system, the instrument could be damaged by exposure to high temperatures.
6. Drain System
After analysis, the water or vapor sample is disposed of through a safely designed drain system. Typically, the drain is also equipped with a trap to prevent environmental damage.
7. Control System
Some modern SWAS Panels are equipped with digital control systems, including PLCs (Programmable Logic Controllers), which facilitate integration with the DCS (Distributed Control System) in the main control room.
The SWAS Panel consists of various components that work in an integrated manner, from sample conditioning units and analytical instruments to protective panels and drainage systems. These components are crucial for maintaining water and steam quality, ensuring efficient, safe boiler and turbine operation, and avoiding the risk of corrosion and scaling.
