PALL Ultipleat® High Flow Series Filter Cartridges



Is your current filtration system taking up too much space and increasing operational costs? In an industrial world that demands high flow rates with minimal maintenance, conventional filters are often a bottleneck. PALL Ultipleat® High Flow Series Filter Cartridges offer a smart solution that allows for up to 40 times fewer filters while delivering significantly superior performance.



Ultipleat® High Flow is a large-diameter (6-inch/152.4 mm) filter cartridge with a coreless, single-ended design. Using an inside-to-outside flow pattern, this filter ensures all contaminants are securely trapped within the element, preventing contamination of the treated water during cartridge replacement.



Key Features:

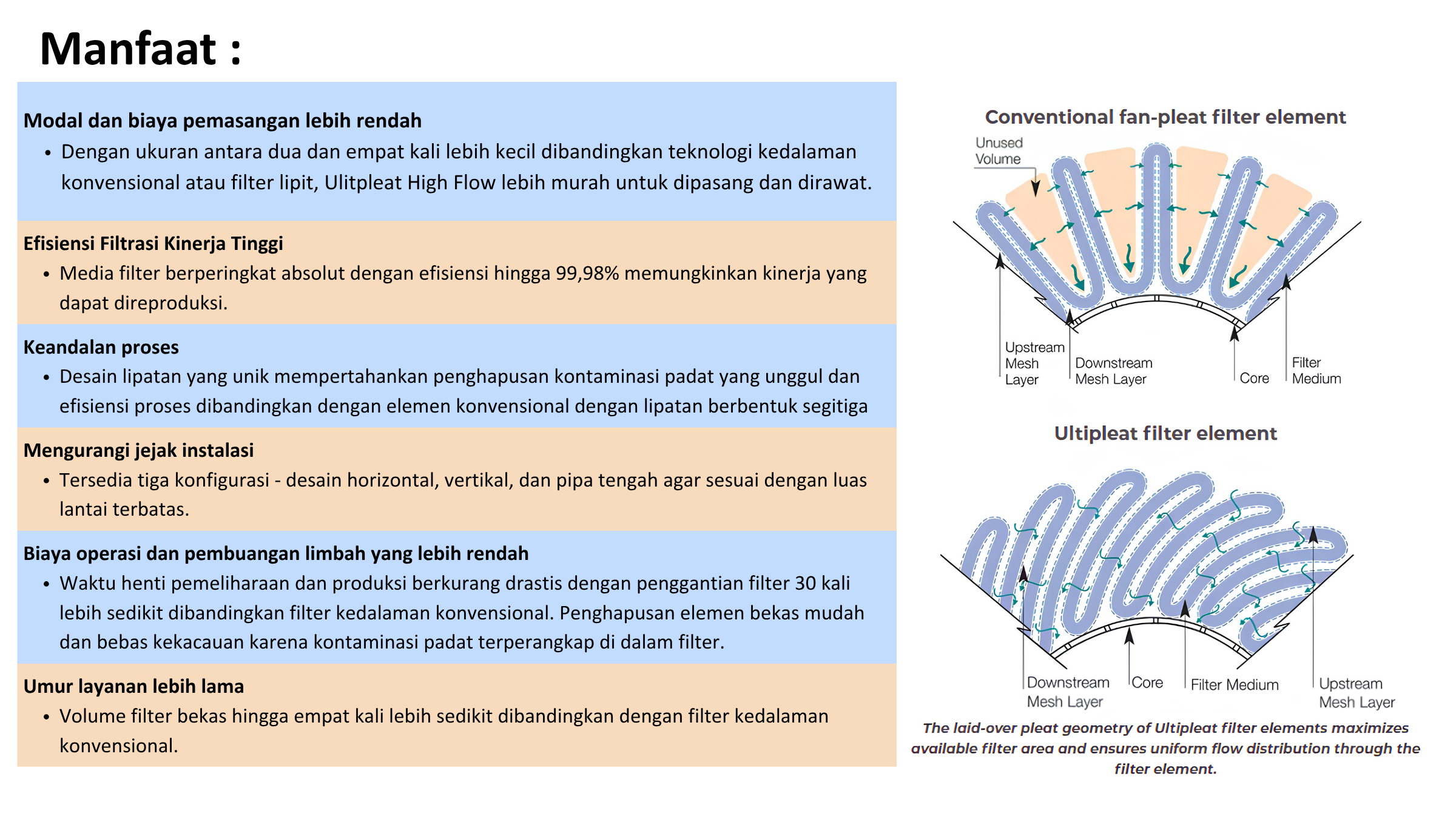

• Crescent-Shaped Pleat Geometry: The unique, patented pleat design allows for maximum filtration surface area in a limited space.
• Reduced Operational Costs: Capable of replacing up to 40 standard cartridges, meaning significantly less downtime for filter replacement.

• Compact System Design: Allows the use of a filter housing that is up to 50% smaller than conventional systems for the same flow rate.
• Environmentally Friendly: Coreless synthetic construction minimizes waste disposal after use.
• Ease of Use: Equipped with a handle for easy and quick cartridge changes.



Applications:
This filter is designed for high-flow applications that require high reliability, such as:
• Industrial water treatment.
• Filtration of fluids with variable viscosity (with adjustment for pressure calculations).
• Applications requiring a high level of sterility or cleanliness with absolute-rated media.





Technical Specifications:
• Nominal Diameter: 6 inches (152.4 mm).
• Length Options: Available in 20, 40, 60, and 80 inches (508 mm to 2032 mm).

• Maximum Flow Capacity: Up to 500 US gpm (1900 L/min) for 60- and 80-inch lengths.
• Maximum Differential Pressure:
1. Polypropylene/CAS Media: 3.44 bard at 82°C (50 psid at 180°F).
2. Glass Fiber/HT Media: 3.44 bard at 121°C (50 psid at 250°F).
• Media Material Options: HDC II (Polypropylene), Profile (Polypropylene), Ultipor® GF (Glass Fiber), Ultipleat HT (Glass Fiber/Aramid), and Ultipleat CAS (PES Membrane).
• Filtration Rating: From 1 micron to 90 microns (Absolute @ 99.98%).



For further information, please contact: PT Hyprowira Adhitama, as PALL distributor in Indonesia, Please see details in this brochure .
